TECHNICAL SPECIFICATIONS

1. STRUCTURE – FOUNDATIONS
The structure will be reinforced concrete. Foundations will be of reinforced concrete individual pad footings.

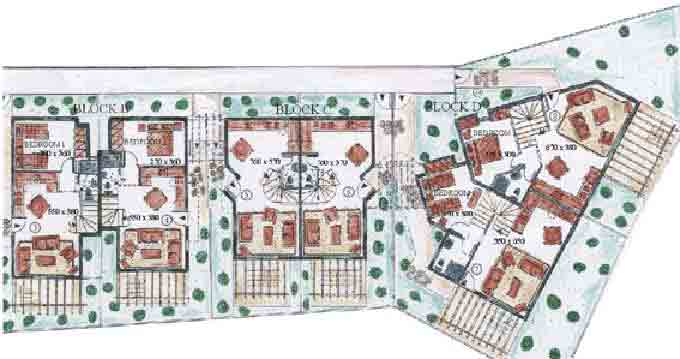

All in accordance with the structural analysis and the drawings of the house.

2. ROOF
The roof will be a reinforced concrete slab. Asphaltic water insulation provided.

3. WALLS
Brickwalls 20 cm and 10 cm thick in accordance with the drawings. High quality brick will be used.
Internal surfaces will be emulsion paint on plaster.
External surfaces will be sprits on plaster.

4. KITCHEN WALLS
Surfaces between kitchen benches and wall cupboards will receive colored ceramic tiles.
All other surfaces will be emulsion painted on plaster.
Value of ceramic tiles CYP 10.00/ m2.

5. BATHROOM AND TOILET WALLS
All surfaces will receive coloured ceramic tiles to 210 cm heigh from the finished floor level.
Value of ceramic tiles will be CYP 10.00/m2.

6. FLOOR FINISHES
6.1. Bedrooms : Ceramic tiles - Value CYP 6.00/m2
6.2. Bathroom and toilets : Ceramic tiles - Value CYP 10.00/m2
6.3. Living, Dining Rooms : Ceramic tiles - Value CYP 6.00/m2
6.4. Verandahs : Ceramic tiles- Value CYP 6.00/m2
6.5. Kitchen : Ceramic tiles - Value CYP 6.00/m2
6.6. Inside stairs : Marble / ceramic - Value CYP 15.00/m2

7. DOORS AND WINDOWS
7.1. Entrance door will be solid timber with frame of softwood timber.
7.2. All internal doors will be flush doors with MDF and frame of softwood timber.
7.3. All handles will be brass.
7.4. All windows and external doors will be double glazed colored aluminium with panes.

8. BEDROOM CUPBOARDS
Internal partitions will be of melamine. Externally MDF doors will be used.

9. KITCHEN BENCHES
9.1. Internal partitions will be of melamine.
9.2. Externally MDF.
9.3. Top will be made of vinyl cover.
9.4. Doubleboul single- drainer acrylic sink will be used.

10. SANITARY FITTINGS
Sanitary fittings and units in accordance with the drawings.
All sanitary units will be of good quality and in accordance with British Standards:
1. Bathtub - CYP 100.00
2. Hand basin - CYP 60.00
3. WC - CYP 80.00
4. Bathroom mirror - CYP 20.00
5. Shower

11. ELECTRICAL INSTALLATION
Electrical installation will be done according to the drawings and approved by E.A.C.
Provision for A/C will be installed in every living room.

12. PLUMBING INSTALLATION
Plumbing and drainage installation will be done in accordance with the drawings.
PVC pipes will be used for cold and hot water supply. Hot water pipes will be properly insulated.
CPVC pipes will be used for drainage.
A 30 galon solar water heater will be installed.

13. PAINTING
13.1. All internal walls will be painted with emulsion paint.
13.2. All ceilings will be emulsion painted.
13.3. All timber surfaces will be painted white

14. SEWAGE DISPOSAL
Septic tank and absorption pit will be constructed and made operative in accordance with the drawings.
Connection with the centrtal sewage system when will operate.

15. EXTERNAL: WORKS
15.1. A fencing wall is to be constructed.
15.2. A common Swimming Pool will be constructed as drawings.
15.3. Tiling around swimming pool as drawings.
